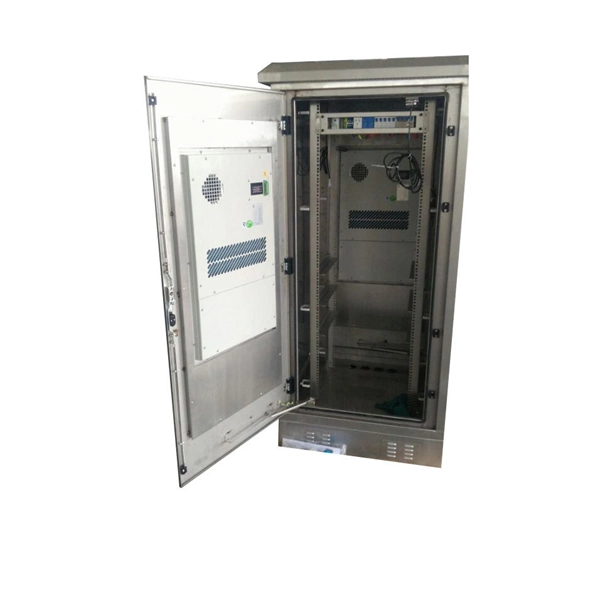

A monitoring terminal box should be installed in a well-lit, accessible location, at a convenient height, protected from moisture and dust, and securely mounted to ensure safe and reliable operation.

Recommended Location and Height

The terminal box should be installed at a height of 1.2–1.5 meters above the operating floor to allow easy access for wiring, maintenance, and monitoring activities . It should be positioned in a location that does not obstruct equipment operation, passageways, or maintenance activities. For areas with multiple measurement points, a centralized location is preferred to facilitate unified management and monitoring .

Environmental Considerations

Choose a location with good lighting, ventilation, and minimal vibration. Avoid areas with corrosive gases or strong electromagnetic interference. For outdoor installations, the terminal box should have an IP65 protection rating to prevent ingress of dust and moisture, ensuring reliable operation even in harsh weather conditions .

Mounting and Protection

The terminal box must be securely mounted with minimal deviation (vertical and horizontal deviations should not exceed 3 mm for standard heights). If different materials are used for the box and support brackets, isolation pads (rubber or PTFE) should be applied to prevent galvanic corrosion . Doors should allow full 180-degree opening, and removable doors are recommended for easier access . Ensure the box is labeled clearly and, if containing intrinsically safe circuits, marked appropriately.

Cable Entry and Grounding

For outdoor boxes, cables should enter from the bottom or side to prevent water ingress. Adequate slack should be provided inside the box, with excess cables coiled and secured. Cable shields must be grounded according to design requirements, and the enclosure itself should be reliably grounded to meet safety standards .

Summary

In practice, a monitoring terminal box should be:

• Mounted at 1.2–1.5 m height for accessibility.
• Located in a well-lit, ventilated, and low-vibration area.
• Protected from moisture and dust (IP65 for outdoor use).
• Securely fixed with proper grounding and cable management.
• Positioned to avoid obstruction and allow easy maintenance and monitoring . Following these guidelines ensures safe, reliable, and convenient operation of the monitoring terminal box while maintaining compliance with industry standards.
