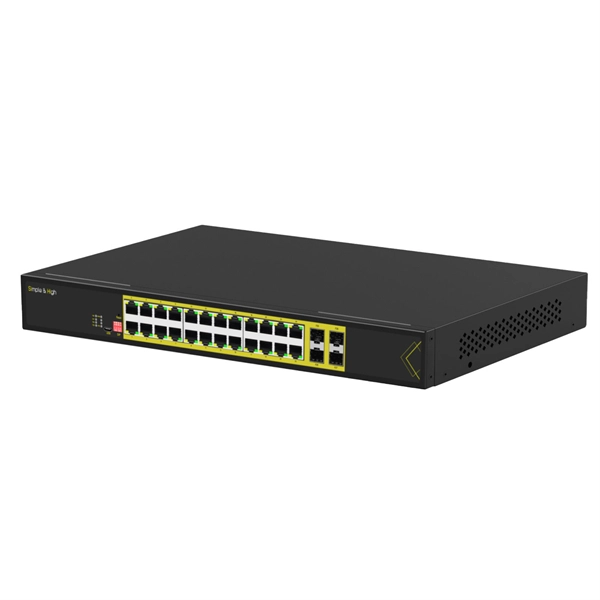

PoE power supply modules can deliver both data and power over Ethernet, and when combined with optical ports, they enable high-speed fiber connectivity with remote device powering.

Overview

PoE (Power over Ethernet) modules allow network devices to receive electrical power and data over a single Ethernet cable, eliminating the need for separate power supplies. When integrated with optical ports, these modules can connect to fiber-optic networks, providing high-speed data transmission while still delivering power to devices such as IP cameras, Wi-Fi access points, and IoT devices .

Types of PoE Modules

PoE modules vary in power output, efficiency, and form factor:

• IEEE 802.3af (PoE): Provides up to 15.4 W per port.
• IEEE 802.3at (PoE+): Provides up to 30 W per port.
• High-power modules: Some modules can deliver more than 60 W for demanding devices . Modules are available in Single-In-Line (SIL), Dual-In-Line (DIL), and Surface Mount (SMT) packages, allowing integration into various network devices and industrial applications .

PoE with Optical Ports

Optical network units (ONUs) like the Huawei OptiXstar P613E-E feature GE ports supporting PoE/PoE+ alongside fiber-optic uplinks. This allows enterprises to deploy high-speed fiber backhaul while powering edge devices over Ethernet . Similarly, powered fiber solutions combine low-voltage DC power with fiber-optic data, enabling long-distance deployment of powered devices without additional cabling or electrical work .

Applications

• Enterprise and campus networks: Powering Wi-Fi access points and IP phones while maintaining fiber connectivity.
• Video surveillance: PoE optical ports support IP cameras with high data rates and power requirements.
• Smart buildings and IoT: Simplifies deployment of sensors and small cells by combining fiber data and PoE power .

Technical Considerations

• Port prioritization: Some PoE switches allow prioritizing power to critical devices to prevent overload .
• Distance limitations: Traditional PoE over copper is limited to ~100 meters, but powered fiber solutions can extend this range significantly.
• Compatibility: Ensure the PoE module complies with IEEE standards and matches the power requirements of connected devices .

Summary

PoE power supply modules with optical ports provide a flexible solution for delivering both power and high-speed data to remote devices. They are widely used in enterprise, industrial, and smart building networks, offering simplified installation, reduced cabling, and support for high-demand devices. Choosing the right module involves considering power output, form factor, and compatibility with fiber-optic infrastructure.
