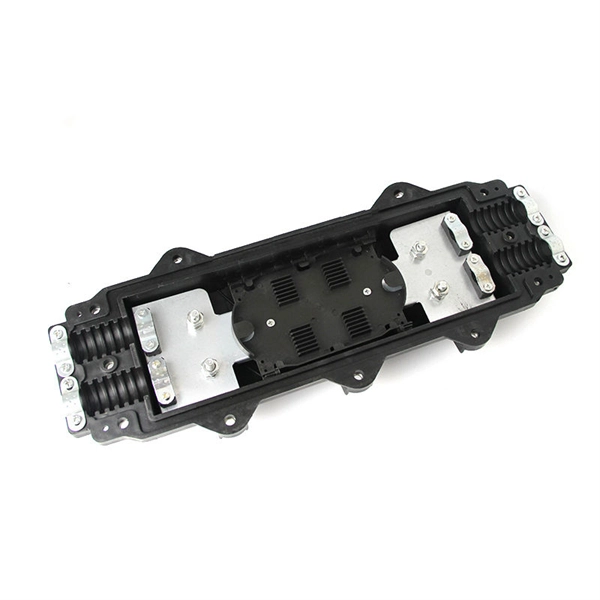

Proper grounding of distribution boxes ensures safety, low-impedance fault paths, and compliance with electrical standards, with specific wire sizes and resistance limits depending on the market.

Key Grounding Principles

1. Qualified Installation: All grounding connections must be performed by a qualified electrician to ensure safety and compliance with local regulations .
2. Wire Sizing:
   • In the US market, a 5.26 mm² (10 AWG) ground wire is standard .
   • In other international markets, a 6 mm² ground wire is typically used .
   • For connections between mounting plates and spindles, larger wires may be required (e.g., 16 mm² or 6 AWG) to maintain low resistance over long cable runs .
3. Connection Points:
   • Attach a ground wire from a threaded stud at the bottom of the distribution box to the mounting plate.
   • Connect a second wire from the mounting plate to the central factory grounding point .
   • Ensure all metal enclosures, panelboards, and conduit systems are bonded to the grounding system .
4. Resistance Requirements:
   • Ground resistance between all system parts should be less than 0.1 Ohm .
   • For tool cables, calculate total resistance using parallel paths to ensure the combined resistance remains below the acceptable threshold .
5. Material and Contact Quality:
   • Use corrosion-resistant materials such as copper-bonded steel rods or properly plated terminals .
   • Ensure clean contact surfaces; avoid paint, powder coatings, or oxidation that can increase resistance .
   • Use tooth-lock washers or similar devices to maintain reliable electrical contact .
6. Bonding and Continuity:
   • Bond all metal piping, raised floors, and expansion fittings to the grounding system .
   • Provide separate insulated green ground conductors for each feeder and branch circuit, connecting them to the panel ground bus .
   • Test all ground cables for continuity and verify grounding electrode system resistance after installation .
7. Environmental Considerations:
   • Soil type, moisture, and weather conditions can affect grounding resistance; multiple rods or parallel connections may be necessary in high-resistance soils .
   • Avoid creating ground loops in long cable runs, especially for shielded cables, to prevent noise and interference .

Best Practices

• Always measure ground resistance after installation and periodically thereafter.
• Use multiple grounding rods if resistance exceeds recommended limits.
• Ensure all grounding paths are continuous and free from corrosion or mechanical damage.
• Follow local electrical codes (e.g., NEC in the US) as minimum requirements . Proper grounding of distribution boxes is critical for personnel safety, equipment protection, and reliable operation. Following these guidelines ensures a low-impedance path for fault currents and minimizes the risk of electrical hazards.
