Lighting distribution boxes should be wired using properly rated wires, breakers, and protective devices, with clear labeling, grounding, and compliance with national and international safety standards.

Wire Selection and Insulation

Select wires according to the lighting load and ensure they meet national electrical safety standards. Wires should have sufficient insulation strength and heat resistance to prevent hazards. The wire gauge must match the current rating of the connected circuits and breakers to avoid overloading .

Component Layout

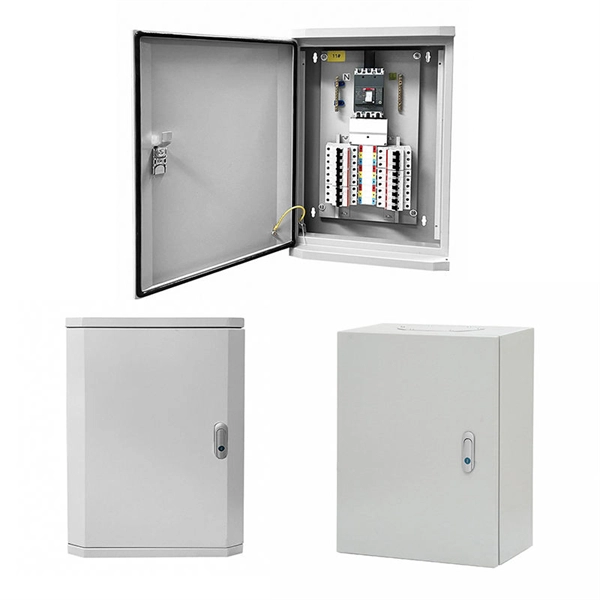

A standard lighting distribution box typically includes:

• Main isolator: Acts as the main switch to manually open or close the power supply .
• RCCB/RCD: Protects against current leakage and electric shock .
• MCBs: Protect individual lighting circuits from overload or short circuits .
• Neutral and earth links: Distribute neutral and grounding connections to subcircuits .
• Terminal blocks and busbars: Ensure secure and organized connections . The components should be arranged for easy operation, maintenance, and safe access, with sufficient space for wiring and future upgrades .

Protection and Safety

Each circuit should have its own MCB or fuse, and the box should include surge protection if necessary. Proper earthing is essential, connecting the earth link to an earth rod or pit to prevent electrical hazards . The box should comply with IEC, DIN, GB, or local standards, and use certified components like ABB or Schneider switches .

Installation Practices

• Install the box in a dry, accessible location with good ventilation, typically around 1.5 meters above the floor .
• Ensure the enclosure has adequate IP/NEMA rating for protection against dust, water, and corrosion .
• Use bottom inlet and outlet for cable entry, with knock-out holes and rubber gaskets for neat wiring .
• Clearly label all cables and breakers for easy identification and future maintenance .
• Perform visual inspections and multimeter tests before powering on .

Testing and Maintenance

After wiring, test the circuits for correct connections, stability, and safety. Schedule regular inspections to ensure long-term reliability and compliance with safety standards . By following these guidelines, a lighting distribution box can safely and efficiently distribute power to lighting circuits while minimizing risks of overload, short circuits, or electrical hazards.
