Article Overview
The typical conduit size for a distribution box ranges from ¾ inch to 2 inches, depending on the number and size of conductors.

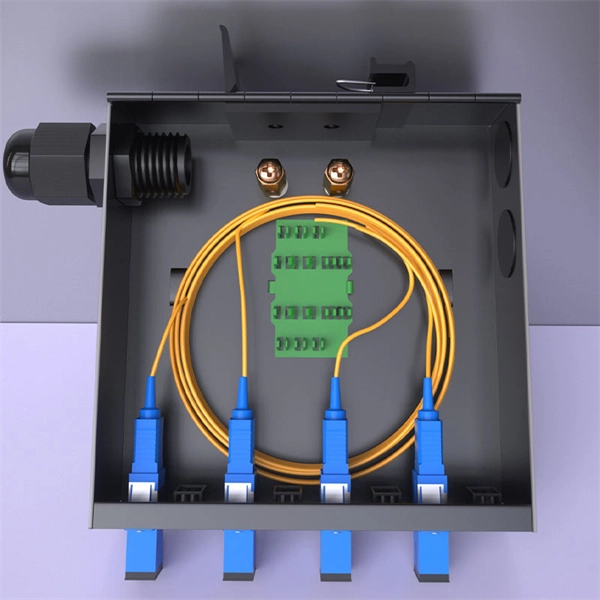

Determining Conduit Size
The size of conduit used in a distribution box is primarily determined by the number of wires, their gauge, and the type of insulation. The National Electrical Code (NEC) specifies maximum conduit fill percentages to prevent overheating, ease wire pulling, and ensure safety. For three or more conductors, a 40% fill rule is commonly applied, meaning the conductors should occupy no more than 40% of the conduit's internal cross-sectional area .
Common Trade Sizes
Electrical conduits come in standard trade sizes, typically measured in inches in the U.S.:
- ½", ¾", 1", 1¼", 1½", 2", 2½", 3", 3½", 4", 5", 6" . For most residential or small commercial distribution boxes, ¾" to 1½" conduits are commonly used, while larger panels or boxes with multiple circuits may require 2" or larger conduits .
Practical Example
For instance, if a distribution box contains 10 conductors of 12 AWG THHN, the total conductor area is calculated using NEC Table 5. A ½" EMT conduit would be too small, while a ¾" EMT conduit would provide adequate space for the wires, complying with the 40% fill rule .
Conduit Type Considerations
- EMT (Electrical Metallic Tubing): Lightweight, common in commercial installations.
- PVC: Suitable for wet or underground locations.
- RMC (Rigid Metal Conduit): Heavy-duty, ideal for industrial or outdoor use.
- Flexible Conduit (FMC or LFMC): Used for motors or tight bends .
Key Takeaways
- Always calculate conduit size based on wire count, gauge, and NEC fill percentages.
- Using a conduit that is slightly larger than the minimum required is preferable to avoid overcrowding and heat buildup .
- Verify the bending radius and installation environment to ensure proper wire pulling and long-term safety . By following these guidelines, electricians can select a conduit size that ensures safe, code-compliant, and practical wiring in distribution boxes.
