Article Overview

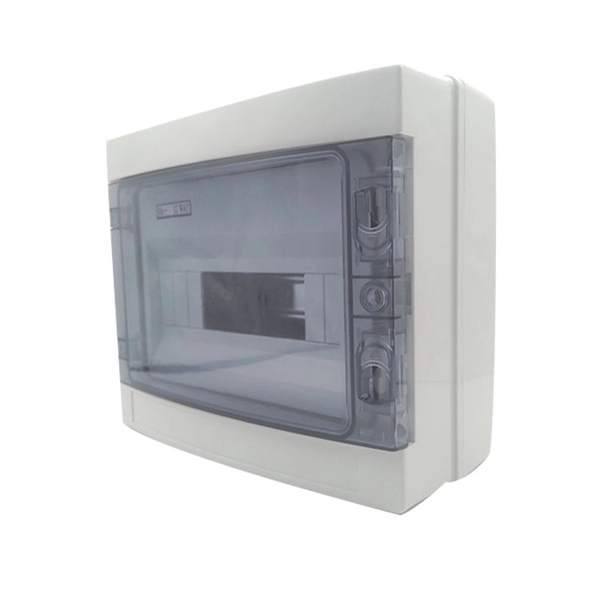

A typical single-phase distribution box arranges the main MCB, RCCB, output MCBs, neutral link, and earth link in a structured sequence to safely distribute power to multiple circuits.
Key Components and Terminal Arrangement
- Main MCB (Double Pole)
- Acts as the main switch controlling the entire supply.
- The incoming phase (live) and neutral wires from the energy meter are connected to the input terminals of the main MCB.
- Output terminals feed the RCCB or directly to the busbars for distribution .
- RCCB / RCD (Double Pole)
- Provides protection against leakage currents, electrical shocks, and insulation faults.
- The input terminals of the RCCB are connected to the output of the main MCB.
- The output terminals supply the single-pole MCBs for individual circuits .
- Output MCBs (Single Pole or Double Pole)
- Each MCB protects a specific load or circuit (e.g., lights, fans, sockets).
- The phase wire from the RCCB output is connected to the input of each MCB.
- The neutral wire of each load is connected to the neutral link .
- Neutral Link / Busbar
- A common terminal strip distributing neutral to all output circuits.
- Connected to the neutral output of the RCCB and to the neutral wires of all loads .
- Earth Link / Busbar
- Provides grounding for safety.
- All earth wires from the supply and connected loads are terminated here and linked to the building's earth electrode .
Wiring Flow Summary
- Incoming supply → Main MCB → RCCB → Output MCBs → Loads
- Neutral wire → Neutral link → Loads
- Earth wire → Earth link → Loads
Color Coding and Safety
- Phase (Live): Red or brown
- Neutral: Black or blue
- Earth: Green/yellow
- Ensure all connections are tight, and the power supply is turned off before wiring .
Visual Representation
A simplified terminal arrangement diagram:
CodeCopyIncoming Supply L ──> Main MCB ──> RCCB ──> Output MCBs ──> Loads N ──> Main MCB ──> RCCB ──> Neutral Link ──> Loads E ─────────────────────────> Earth Link ──> Loads
This layout ensures safe distribution, proper protection, and easy maintenance. For more detailed diagrams, including specific MCB ratings and RCD connections, refer to single-phase distribution box wiring guides .
