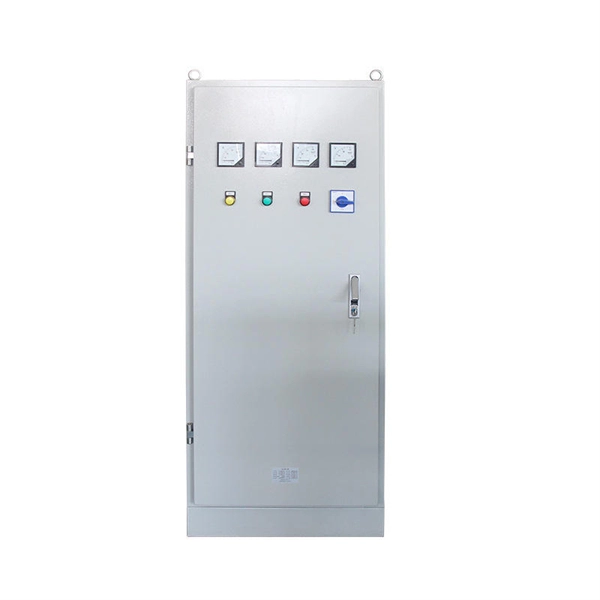

Electrical distribution boxes in fan rooms must be installed in accessible, ventilated locations, comply with NEC, IEC, or BS 7671 standards, and use fan-rated boxes where ceiling fans are supported.

Placement and Accessibility

Distribution boxes should be installed in dry, accessible areas with good ventilation to prevent overheating and allow maintenance. The recommended mounting height is typically 1 to 1.8 meters from the floor, with 1.3 meters suggested for elderly or handicapped users in residential settings. Adequate working space must be provided around the panel to ensure safe operation and inspection .

Fan-Rated Boxes

In rooms where ceiling fans are installed, fan-rated outlet boxes are required to support the fan's weight and vibration. According to the 2026 NEC 314.27 (B), fan-rated boxes must be installed at ceiling outlets centrally located in living and sleeping areas or at locations designated by the installer, designer, or building owner for a ceiling fan. The box must allow direct access to structural framing capable of supporting the fan without removing the box . This ensures safety and prevents over-application of fan-rated boxes in unnecessary locations.

Box Selection and Protection

Choose boxes with appropriate IP or NEMA ratings to protect against dust, moisture, and mechanical damage. Steel boxes are preferred for durability, while plastic boxes are suitable for indoor environments. Inside the box, ensure proper installation of circuit breakers, busbars, terminal blocks, and DIN rails for neat wiring and modular expansion . Each circuit should have its own protection device, such as a breaker or fuse.

Wiring and Safety

• Use correct wire gauge and secure grounding.
• Maintain neat cable management and proper insulation.
• Ensure fasteners do not damage conductors or compromise insulation.
• Boxes must be rigidly fastened to the structure and flush with finished surfaces to prevent fire spread .

Compliance with Standards

• NEC (National Electrical Code): Follow Article 314 for box installation, including fan-rated requirements.
• IEC 60364 / IEC 61439: Ensure panels meet low-voltage installation and performance standards.
• BS 7671: Provides UK-specific guidance on accessibility, clearance, environmental conditions, and current-carrying capacity .

Maintenance and Labeling

Label all circuits clearly and schedule regular inspections to ensure long-term reliability. Modular designs facilitate future upgrades and maintenance . By following these guidelines, distribution boxes in fan rooms will be safe, code-compliant, and durable, supporting both electrical distribution and ceiling fan installations effectively.
