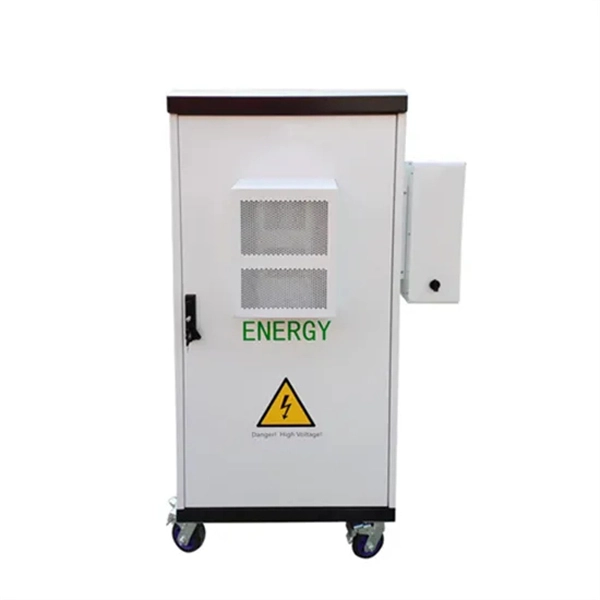

Setting up an industrial power distribution box requires careful planning of load distribution, proper installation, wiring, and safety compliance to ensure reliable and efficient power delivery.

Step 1: Assess Power Requirements

Before installation, calculate the total power demand of your facility, including continuous loads (e.g., production lines, pumps) and intermittent loads (e.g., maintenance equipment) to determine the rated current for the distribution box . Identify high-power clusters and low-power areas to strategically place the box, minimizing cable length and energy losses .

Step 2: Choose the Right Distribution Box

Select a box based on:

• Environment: Indoor or outdoor (IP/NEMA ratings for dust and water protection) .
• Load characteristics: Ensure the box can handle the calculated current.
• Protection requirements: Include breakers, fuses, surge protectors, and microprocessor protection devices for overcurrent, short circuits, and arc faults .
• Material: Steel for durability in harsh environments, plastic for lighter indoor setups .

Step 3: Plan the Layout

• Separate circuits by voltage levels (e.g., 400V, 1kV, 10kV) to avoid interference .
• Allocate space for future expansion and modular upgrades .
• Label all circuits clearly for maintenance and safety .

Step 4: Mount the Distribution Box

• Install in a dry, accessible area with good ventilation, typically around 1.5 meters above the floor .
• Use sturdy mounting brackets to secure the box and prevent vibration or movement .
• Ensure proper clearance around the box for maintenance and heat dissipation.

Step 5: Wiring and Connections

• Turn off the main power supply and verify with a voltage tester before starting .
• Follow color codes: Brown (live), Blue (neutral), Green/Yellow (earth) .
• Strip wires to the correct length and tighten terminals firmly without over-torquing .
• Use cable ties or conduits to organize wiring and prevent tangling .
• Connect each circuit to its dedicated breaker or fuse to ensure protection .

Step 6: Testing and Commissioning

• Perform visual inspections and multimeter tests to verify connections and insulation .
• Check that all protection devices function correctly.
• Record installation details for future inspections and maintenance .

Step 7: Maintenance and Safety

• Schedule regular inspections to ensure long-term reliability .
• Keep the box clean, dry, and free from dust or debris.
• Update labels and documentation whenever circuits are modified or expanded. By following these steps, you can ensure that your industrial power distribution box is safe, efficient, and compliant with standards, reducing the risk of electrical failures and downtime .
