Cable tray systems provide a durable, organized, and safe solution for managing electrical and communication cables in factory environments.

Overview of Cable Tray Systems

Cable trays are rigid, open structures designed to support, route, and protect electrical and data cables in industrial settings. Unlike conduits, they allow easy access for maintenance, inspection, and future expansion. They are widely used in factories, commercial buildings, data centers, and technical infrastructure projects due to their flexibility and durability .

Types of Cable Trays

• Ladder Trays: Feature two side rails connected by rungs, ideal for heavy-duty power cables and long industrial runs. They provide excellent airflow and allow easy cable entry and tie-in .
• Perforated Trays: Flat base with ventilation holes, suitable for light to medium-duty cabling, offering good airflow and support for smaller cables .

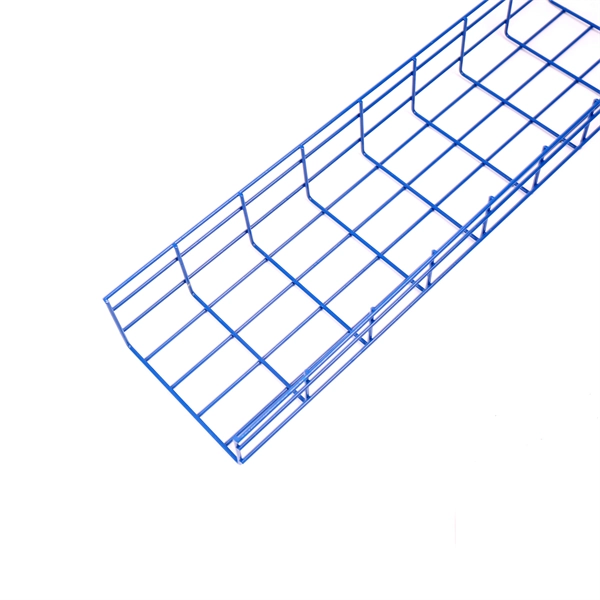

• Wire Mesh Trays: Lightweight and flexible, commonly used for data, telecom, and low-voltage cables where routing may change frequently .
• Solid Bottom Trays: Provide full support and protection for sensitive cables in environments prone to dust or moisture .
• Channel Trays: Compact and suitable for specific routing needs or tight spaces .

Material Selection

Choosing the right material is critical for durability and environmental resistance:

• Stainless Steel: Corrosion-resistant, ideal for harsh or chemical-prone environments.
• Galvanized Steel: Strong and cost-effective, suitable for indoor and outdoor use.
• Aluminum: Lightweight and corrosion-resistant, good for long spans.
• Fiberglass-Reinforced Plastic (FRP/GRP): Non-conductive and corrosion-resistant, suitable for extreme conditions .

Installation Best Practices

1. Plan the Route: Map the tray path considering clearance, load capacity, and cable separation. Avoid overcrowding to maintain airflow and prevent overheating .
2. Select Appropriate Tray Size and Duty Rating: Light duty for small cables, medium duty for mixed loads, and heavy duty for large industrial cable bundles .
3. Secure Mounting: Use proper clamps, brackets, and supports. Spacing typically ranges from 1.5 to 3 meters, depending on tray type and load .
4. Align and Connect Trays: Ensure trays are straight, level, and securely connected. Use rollers for long cable runs to prevent kinks .
5. Environmental Protection: For factories with dust, moisture, or chemical exposure, select corrosion-resistant materials and consider covers or solid-bottom trays .
6. Maintenance and Inspection: Regularly check for loose fixings, corrosion, or overfilled trays to ensure long-term reliability .

Advantages for Factory Buildings

• Enhanced Safety: Protects cables from impact, dust, and moisture, reducing fire risk .
• Ease of Maintenance: Open design allows quick inspection and cable replacement .
• Scalability: Supports future expansion without major modifications .
• Durability: Materials withstand harsh industrial environments, prolonging cable life .

Conclusion

For factory buildings, a well-planned cable tray system using the appropriate tray type, material, and duty rating ensures safe, organized, and efficient cable management. Ladder trays are typically preferred for heavy industrial power cables, while perforated or wire mesh trays suit lighter or data cabling. Proper installation, secure mounting, and regular maintenance are essential to maximize performance and longevity .
