Box-type optical splitters, typically housed in ABS enclosures, are essential for distributing optical signals in FTTH and PON networks, offering protection, scalability, and reliable signal splitting.

Overview

Box-type optical splitters are passive fiber optic devices designed to split a single optical signal into multiple outputs or combine multiple signals into one. They are widely used in fiber-to-the-home (FTTH), fiber-to-the-x (FTTX), and passive optical networks (PON) to efficiently distribute signals from a central office to multiple subscribers . The box format provides robust protection for the internal splitter components, making them suitable for both indoor and outdoor installations .

Types of Splitters in Box Enclosures

1. PLC (Planar Lightwave Circuit) Splitters
   • Use integrated waveguide technology on a quartz substrate.
   • Provide uniform signal distribution, high reliability, and support for large split counts (e.g., 1x16, 1x32, 1x64).
   • Compact and suitable for installation in existing junction boxes or racks without special modifications .
2. FBT (Fused Biconical Taper) Splitters
   • Made by fusing and tapering optical fibers to achieve desired split ratios.
   • Cost-effective for low-channel splits like 1x2 or 1x4.
   • Sensitive to wavelength and less uniform than PLC splitters, but simpler and cheaper for small-scale deployments .

Box Form Factors

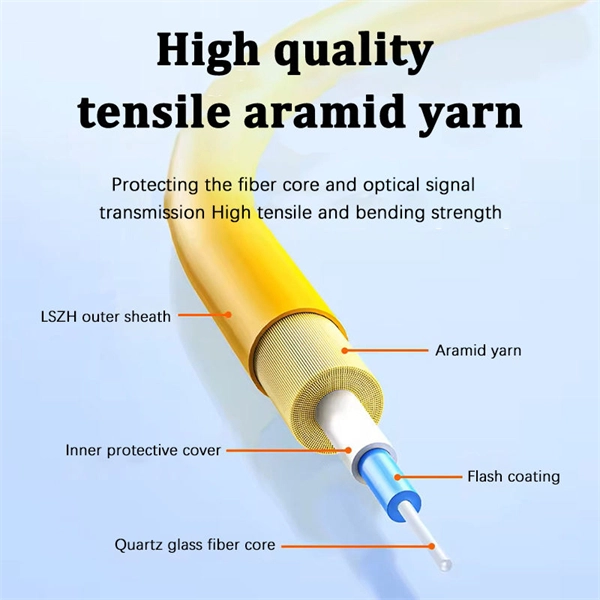

• ABS Box Splitter: Durable plastic enclosure, often IP65 rated, suitable for wall-mount or outdoor use. Protects internal fibers and splitters from environmental damage .
• LGX Cassette Splitter: Modular design for high-density environments, fits standard LGX chassis, ideal for data centers or headends .
• Rack-Mount Splitter: Pre-installed in 1U or 2U racks for plug-and-play integration into network racks .
• Bare Fiber Splitter: Compact, connectorless design for direct splicing into fiber trays or enclosures .

Key Features

• Customizable split ratios and connector types to meet project requirements .
• Low insertion loss (IL) and polarization-dependent loss (PDL) for high-quality signal transmission .
• Support for multiple wavelengths in triple-play networks (voice, video, data) .
• Durable and weather-resistant enclosures for outdoor deployment .

Applications

• FTTH and FTTX networks for residential and commercial broadband distribution.
• PON systems such as EPON, GPON, and BPON to branch optical signals from central offices to multiple endpoints.
• Telecommunication and data center networks requiring reliable signal splitting and management . Box-type optical splitters are a critical component in modern fiber optic networks, combining signal distribution efficiency, environmental protection, and installation flexibility, making them ideal for both large-scale and localized network deployments.
