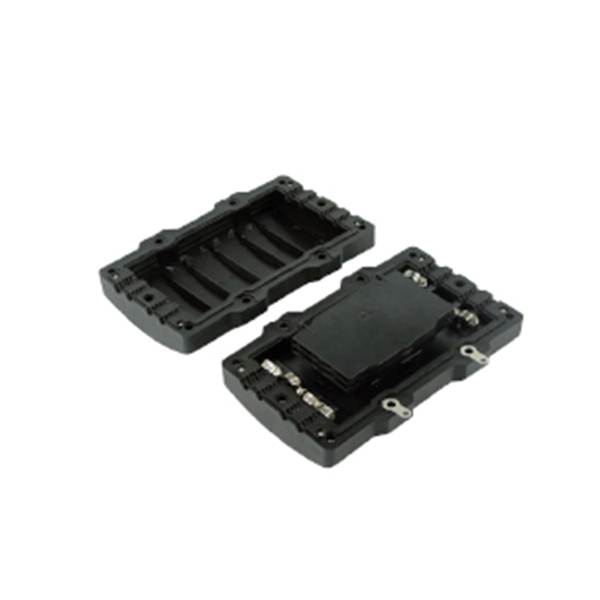

Bridging in a distribution box involves securely connecting terminals or busbars to ensure proper current distribution, reliable grounding, and safe operation.

Key Principles of Bridging

1. Use Appropriate Busbars or Bridging Strips Bridging is typically done using copper or tinned copper busbars or bridging strips that match the current rating of the circuits. These strips connect multiple terminals, such as neutral or ground points, to ensure uniform potential and reduce voltage drops ( ). 2. Secure Connections All connections must be tight and corrosion-free. Use screw terminals or insulated clamps as provided in the distribution box. Loose connections can cause arcing, overheating, or circuit failure ( ). 3. Correct Wire and Terminal Sizing Ensure that the bridging conductors are of sufficient cross-sectional area to carry the combined current of all connected circuits. Follow local electrical codes (NEC, IEC) for minimum wire sizes and breaker ratings ( ). 4. Grounding and Neutral Bridging

• Neutral bridging: Connect all neutral terminals to a common neutral busbar. Ensure that the neutral busbar is isolated from the enclosure if required by code.
• Ground bridging: Connect all protective earth (PE) wires to a common grounding busbar, which is then bonded to the distribution box enclosure and the main grounding system ( ). 5. Insulation and Safety Use insulating barriers or covers where bridging strips are exposed to prevent accidental contact. Maintain proper spacing between live and neutral/ground connections to avoid short circuits ( ). 6. Labeling and Documentation Clearly label all bridged terminals and circuits. This helps during maintenance, troubleshooting, and future upgrades ( ).

Step-by-Step Bridging Example

1. Turn off power and verify with a tester that the box is de-energized.
2. Install the distribution box securely on a stable surface.
3. Mount busbars for neutral and ground.
4. Connect bridging strips to link multiple terminals on the same busbar.
5. Attach circuit wires to the appropriate terminals, ensuring tight and secure connections.
6. Check continuity and insulation resistance before powering the system.
7. Label circuits and perform a final inspection for compliance and safety ( ).

Best Practices

• Avoid overloading a single bridging strip; use multiple strips if necessary.
• Use high-quality, certified components to ensure long-term reliability.
• Maintain adequate spacing for heat dissipation and future expansion.
• Schedule regular inspections to detect corrosion, loose connections, or wear ( ). By following these principles, bridging in a distribution box can be performed safely, ensuring reliable power distribution and compliance with electrical standards.
