Connecting an optical module to a fiber optic patch panel involves selecting the correct module and connector type, preparing the fiber, and carefully inserting it into the patch panel adapter to ensure low-loss, stable connections.

Step 1: Choose the Right Patch Panel and Module

Select a fiber optic patch panel compatible with your network type (single-mode or multi-mode) and the number of ports required for current and future expansion . Ensure the optical module matches the connector type of the patch panel, commonly LC, SC, ST, or MTP/MPO . Modular patch panels allow easy replacement or upgrades of optical modules.

Step 2: Prepare the Fiber Optic Cable

Before connecting, inspect the fiber optic patch cable and module end face for cleanliness and damage. Use a fiber optic cleaning tool to remove dust or debris, as contamination can cause signal loss . Ensure the cable length is sufficient to reach the patch panel without excessive tension or bending.

Step 3: Insert the Optical Module

1. Identify the correct port on the patch panel for the module.

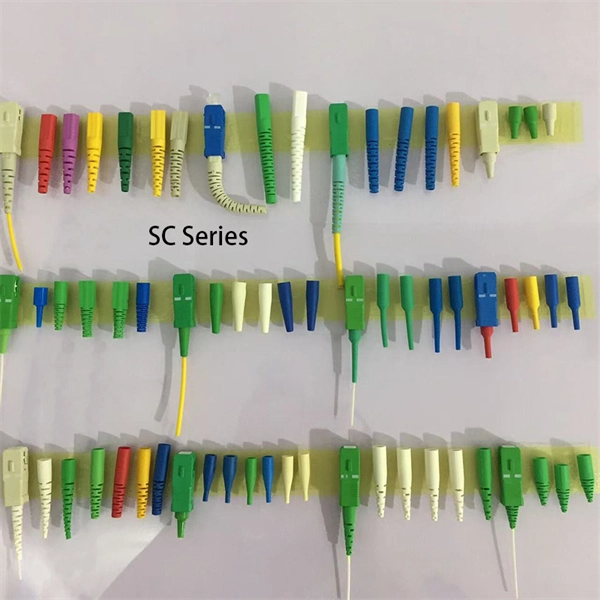

2. Align the optical module connector with the adapter on the patch panel. LC connectors are small and push-pull, while SC connectors are larger with a simple push-pull mechanism .
3. Gently insert the module into the adapter until it clicks or seats firmly. Avoid forcing the connector to prevent damage to the fiber or adapter.

Step 4: Manage Fiber Cables

Route the fiber cables neatly to prevent crossing, overlapping, or sharp bends, which can degrade signal quality . Use cable management trays or guides provided in the patch panel to maintain proper bend radius and organization.

Step 5: Test the Connection

After installation, verify the optical link using a fiber optic tester or power meter to ensure low insertion loss and proper signal transmission. Label the ports and cables for easy identification and future maintenance .

Best Practices

• Always handle fibers carefully to avoid microbends or breaks.
• Keep connectors clean and capped when not in use.
• Maintain proper bend radius according to manufacturer specifications.
• Plan the patch panel layout to allow for future expansion and easy troubleshooting . By following these steps, you can ensure a reliable, low-loss connection between your optical module and fiber optic patch panel, optimizing network performance and maintainability.
