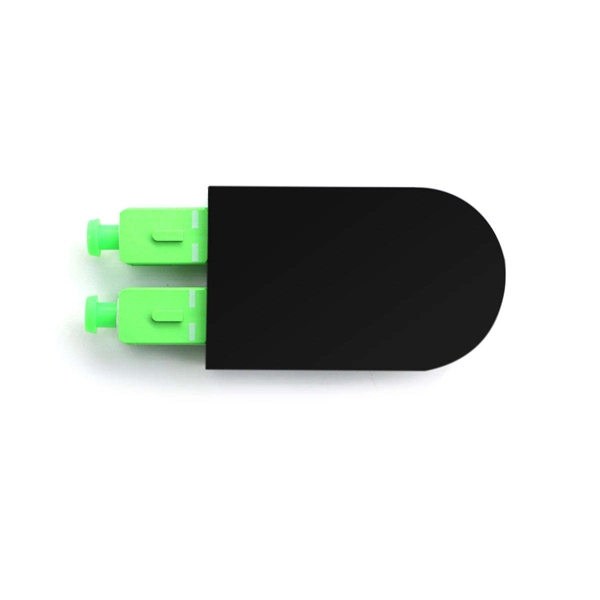

An optical splitter transmits signals by dividing a single input light signal into multiple output signals using passive optical components, distributing the optical power according to a predetermined split ratio.

Working Principle

An optical splitter is a passive device that operates without electricity, relying on the physics of light to distribute signals. Light travels through the fiber core via total internal reflection, and when it enters the splitter, it encounters a network of waveguides or fused fibers that redirect and divide the light among multiple output fibers . The division of light is determined by the split ratio, such as 1:2, 1:4, 1:32, or 1:64, which specifies how the input power is distributed across the outputs .

Types of Optical Splitters

1. PLC (Planar Lightwave Circuit) Splitters: Use integrated waveguide technology on a quartz substrate to evenly distribute light. They are highly uniform, support many output channels, and are wavelength-insensitive, making them ideal for large-scale networks .
2. FBT (Fused Biconical Taper) Splitters: Made by fusing and tapering fibers together. They are cost-effective for small splits but less uniform than PLC splitters .

Signal Transmission Process

1. Signal Input: The optical signal, generated by an Optical Line Terminal (OLT) at the central office, enters the splitter through a single input fiber .
2. Signal Distribution: Inside the splitter, the light is split according to the design—either evenly or proportionally—through waveguides or fused fiber regions. This process may introduce insertion loss, which is the reduction in signal power due to splitting .
3. Signal Output: The divided signals exit through multiple output fibers and are transmitted to Optical Network Terminals (ONTs) at user locations. The splitter can also operate bidirectionally, combining signals from multiple inputs into one output if needed .

Network Applications

Optical splitters are widely used in Passive Optical Networks (PON), including GPON, EPON, and FTTH systems, to efficiently distribute a single fiber's signal to multiple subscribers without requiring active electronics . They enable centralized or cascaded splitting, allowing network designers to scale the number of users while maintaining signal quality.

Key Considerations

• Split Ratio: Higher split ratios (e.g., 1:64) increase insertion loss and reduce the signal strength at each output, requiring careful planning of OLT power and network reach .
• Uniformity: Ensures consistent signal strength across all outputs, critical for reliable bandwidth and service quality .
• Wavelength Compatibility: Modern splitters support multiple wavelengths for services like data, voice, and video . In summary, an optical splitter transmits signals by passively dividing light from a single input fiber into multiple outputs, using precise optical engineering to maintain signal integrity and uniformity across a network of users. This enables cost-effective and scalable fiber optic deployments.
