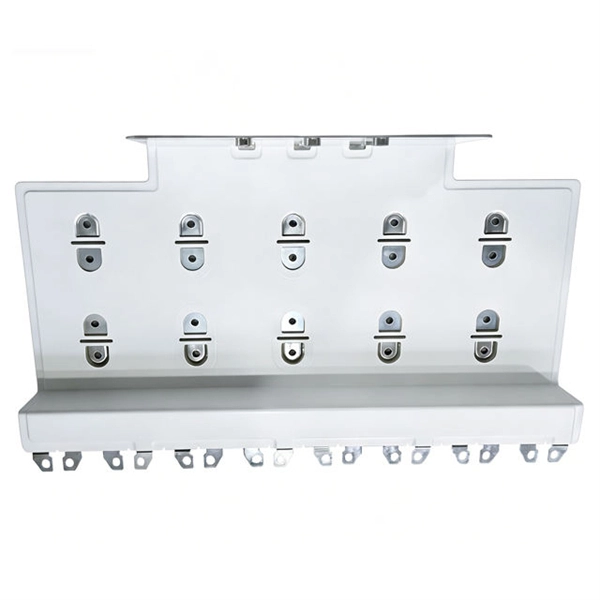

Standard distribution boxes typically accommodate single-gang or multi-gang sockets, with dimensions ranging from 2″×3″×3.5″ for single outlets to larger enclosures for multiple sockets, and RJ45 area boxes sized according to network requirements.

Electrical Box Dimensions

For general electrical installations, single-gang boxes used for one switch or outlet usually measure around 2 inches × 3 inches × 3.5 inches, with internal volumes of 18 cubic inches or more to comply with NEC wire-fill guidelines and allow safe conductor splicing (plastic or metal boxes may vary slightly in depth) . Multi-gang boxes increase in width according to the number of devices, while depth typically ranges from 1.5″ to 3.5″, with deeper boxes recommended when multiple wires converge . Junction boxes often measure 4″ × 4″ with multiple depth options to accommodate splices and future expansion .

Industrial and Network Distribution Boxes

For industrial or network applications, area distribution boxes designed for RJ45 sockets (Cat 5e or Cat 6) are modular and can house 1 to 12 sockets. These boxes are often installed in technical flooring or false ceilings, and their dimensions are selected based on the number of links and network layout . RJ45 connectors typically include a locking nut and allow easy rewiring, with spacing maintained to prevent pair breakage (minimum 13 mm between pairs) and ensure proper cable management .

Wall-Mount and Freestanding Enclosures

Wall-mounted enclosures for electrical or low-voltage distribution commonly range from 200×200×120 mm up to 800×600×300 mm, while freestanding cabinets can be 1600–2200 mm in height, 600–1800 mm in width, and 300–600 mm in depth . These dimensions account for internal layout, cable entry, bend radius, and future spare capacity. Manufacturers provide size families rather than a single global standard, so always verify the internal usable space versus external dimensions .

Key Considerations

• Internal volume is critical for safety and code compliance; overcrowding can lead to fire hazards .
• Depth is often more important than width when multiple wires or smart devices are installed .
• Socket spacing in network boxes should maintain proper pair separation to ensure signal integrity .
• Material differences (plastic vs. metal) may slightly affect internal volume and depth options . By selecting the correct box type, size, and depth, you ensure safe installation, compliance with standards, and flexibility for future upgrades.
