Optical couplers are designed to efficiently transfer light between fibers, waveguides, or free-space beams, with structures tailored to mode matching, coupling efficiency, and integration requirements.

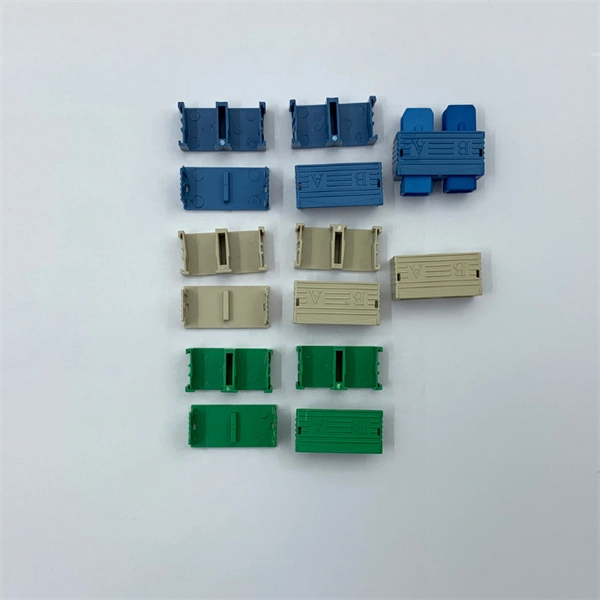

Overview of Optical Coupler Structures

Optical couplers are devices that transfer optical power from one medium to another, such as from a fiber to a waveguide or between fibers. Their structural design depends on the type of coupler and the application, balancing efficiency, footprint, and fabrication tolerance . Common categories include:

• Fiber Couplers: These can be fabricated by thermally fusing and tapering fibers, side-polishing, or using planar lightwave circuits. Designs include 2×2 couplers, Y-couplers, T-couplers, and star couplers, which distribute light among multiple outputs . Polarization-maintaining fibers can be used for PM couplers to preserve polarization states.
• Waveguide Couplers: Often used in photonic integrated circuits (PICs), waveguide couplers rely on mode overlap between the input and output waveguides. Inverse taper structures are common, where the waveguide width gradually increases along the propagation direction to match the mode size of the fiber or adjacent waveguide . Typical silicon waveguides for fundamental TE mode are about 200 nm high and 500 nm wide.
• Grating Couplers: These are off-plane couplers that diffract light from a fiber into a waveguide using a periodic grating structure. They are widely used for fiber-to-chip coupling and allow vertical coupling, which simplifies packaging but may have narrower bandwidth compared to edge couplers .
• Prism and Input Couplers: Prism couplers use total internal reflection to couple light into a waveguide, while input couplers often employ lenses to focus a beam into a waveguide, requiring careful mode matching to minimize losses .

Design Considerations

1. Mode Matching: The spatial distribution of the optical mode in the input must match the mode of the output waveguide or fiber to maximize coupling efficiency .
2. Coupling Efficiency: Factors such as radial, axial, and angular alignment affect efficiency. Large mode field diameters (MFD) can reduce sensitivity to angular misalignment, achieving efficiencies above 95% in optimized fiber couplers .
3. Material and Fabrication: Silicon photonics allows CMOS-compatible fabrication, enabling compact and scalable designs. Graded-index (GRIN) couplers and evanescent couplers are used for chip-to-chip vertical coupling, achieving low insertion loss and broad bandwidth .
4. Integration and Footprint: Edge couplers and inverse tapers are preferred for in-plane coupling in PICs, while grating couplers are suitable for vertical coupling, balancing ease of packaging and device density .

Applications

Optical couplers are essential in fiber-optic communication, data centers, LIDAR, photonic computing, and optical interconnects. Their structural design directly impacts signal integrity, insertion loss, and bandwidth, making careful engineering of taper lengths, waveguide dimensions, and alignment critical for high-performance systems . In summary, the structural design of optical couplers involves selecting the appropriate type (fiber, waveguide, grating, prism), optimizing mode matching, and ensuring fabrication compatibility with the target platform, whether for fiber-to-fiber, fiber-to-chip, or chip-to-chip optical interconnects.
