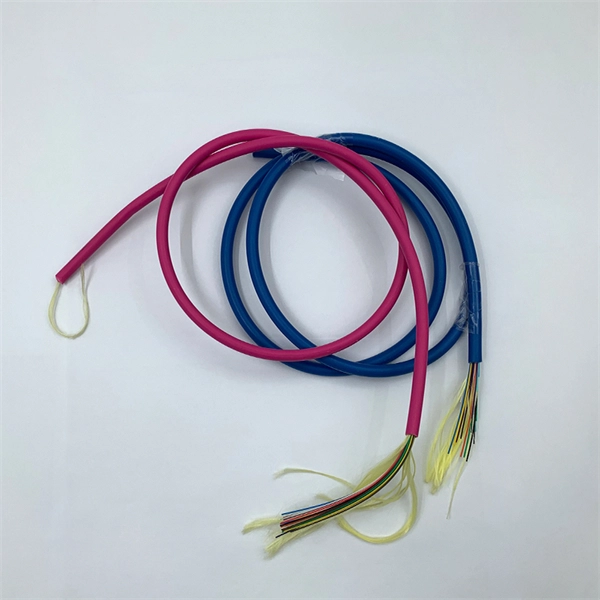

Optical fiber network architecture consists of central office equipment, distribution networks, splitters, and end-user terminals that collectively deliver high-speed fiber connectivity.

Core Components

1. Optical Line Terminal (OLT): Located at the service provider's central office, the OLT is the primary aggregation device in a fiber network. It initiates the optical signal, manages data flow, converts optical signals to electrical signals, allocates bandwidth, authenticates end-user devices, and monitors the network. OLTs are typically housed in subracks with multiple GPON ports, each supporting multiple users, and are scalable to accommodate network growth . 2. Optical Distribution Frame (ODF): The ODF organizes and manages fiber connections, providing a structured interface between outdoor fiber cables and active equipment. It simplifies maintenance, allows flexible patching, and protects fibers from damage . 3. Passive Optical Splitters (POS): Splitters divide a single optical signal into multiple outputs to serve several users. They are unpowered devices, typically performing 1:N splitting, where N can range from 2 to 64, depending on network design. Splitters are essential in Passive Optical Networks (PON) to reduce fiber usage while distributing signals efficiently . 4. Optical Distribution Network (ODN): The ODN connects the OLT to end-user devices and includes optical fibers, connectors, and splitters. It forms the physical path for signal transmission from the central office to subscribers . 5. Fiber Distribution Terminals (FDT) and Fiber Access Terminals (FAT): These intermediate distribution points extend the network closer to users, managing fiber routing and connections in neighborhoods or buildings . 6. Optical Network Unit (ONU) / Optical Network Terminal (ONT): Located at the user's premises, ONUs/ONTs convert optical signals into electrical signals for devices like computers or modems. They serve as the interface between the fiber network and the subscriber's equipment . 7. Fiber Terminal Boxes (FTB) and Optical Distribution/Splitter Boxes (ODB/OSB): These boxes provide secure termination points for fibers, house splitters, and facilitate connections to multiple end users. They are often installed outdoors or within buildings to manage local distribution .

Network Architecture Types

1. Point-to-Point (P2P): Direct fiber connection between two endpoints, offering high bandwidth and ideal for long-distance transmission . 2. Point-to-Multipoint (P2MP) / Passive Optical Network (PON): Uses splitters to distribute a single fiber signal to multiple users, common in FTTH deployments. PON reduces fiber requirements but shares bandwidth among users . 3. Active Optical Network (AON): Each user has a dedicated fiber to a powered switch in the provider's network. AON uses electrically powered equipment to manage data, unlike PON which relies on passive splitters .

Summary

An optical fiber network integrates central office equipment (OLT, ODF), distribution networks (ODN, FDT/FAT), splitters (POS), and end-user devices (ONU/ONT, FTB/OSB). The architecture can be active or passive, and the choice of topology (P2P or P2MP) depends on bandwidth requirements, cost, and scalability. These components collectively ensure high-speed, reliable, and scalable fiber connectivity from the provider to the subscriber .
