An ODF (Optical Distribution Frame) patch panel is a centralized unit for terminating, splicing, and managing optical fiber cables, ensuring organized routing and protection of fibers.

Overview

An ODF patch panel serves as the backbone of fiber optic networks, providing a secure interface between incoming optical cables and network equipment such as switches or routers. It allows for fusion splicing, connectorization, and cross-connection of fibers while protecting delicate splices from damage and facilitating easy maintenance and testing .

Structure and Components

• Housing: Typically made of cold-rolled steel or aluminum alloy with anti-corrosion powder coating for durability .
• Cable Entry Ports: Designed for top or bottom entry, often sealed to prevent moisture, dust, or rodent intrusion .
• Splice Trays: Hold fusion splices and pigtails, maintaining proper bend radius to prevent fiber damage .
• Adapters and Connector Plates: Modular or fixed plates support SC, LC, FC, ST, or MPO/MTP connectors for flexible network configurations .
• Cable Management: Integrated rings, breakout plates, and routing channels organize fibers and maintain bend radius compliance .

Types and Mounting Options

• Rack-Mount ODFs: Standard 19-inch units (1U, 2U, 4U) for data centers or telecom racks, often with sliding drawers for rear access .
• Wall-Mount ODFs: Compact enclosures for smaller installations or remote entry points, typically 12–48 ports .
• High-Density MPO/MTP Panels: Support multi-fiber connectors (12, 24, 48 fibers per interface) for scalable, high-density deployments .

Applications

• Data Centers: Centralized termination and cross-connect for high-density fiber networks .
• Enterprise Networks: Floor IDFs or building entrances for structured cabling .
• FTTx / PON Networks: ODFs act as distribution points for optical splitters and fiber terminal boxes .
• Telecom Central Offices: Head-end or meet-me rooms for managing incoming and outgoing fiber links .

Installation and Maintenance

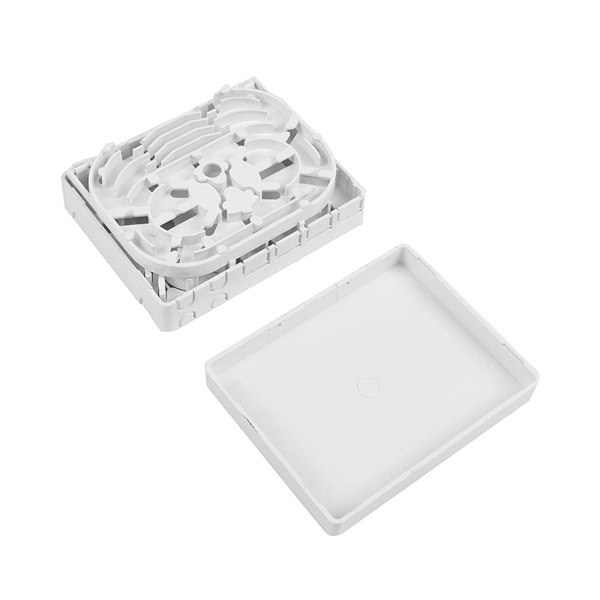

• Cables are secured at entry points using breakout plates or holders, then stripped and routed into splice trays .
• Splices are performed to pigtails, which are then connected to adapters for patching .
• Sliding or pull-out trays allow technicians to access fibers without disrupting adjacent connections .
• Proper bend radius and cable management prevent signal loss and physical damage .

Key Advantages

• Organized Fiber Management: Reduces clutter and simplifies troubleshooting.
• Protection: Shields fibers from mechanical stress and environmental hazards.
• Scalability: Modular designs allow easy expansion and reconfiguration.
• Compatibility: Supports multiple connector types and high-density configurations for modern networks . In summary, an ODF patch panel is essential for structured fiber networks, providing a secure, organized, and scalable solution for terminating, splicing, and managing optical cables across data centers, enterprise networks, and telecom infrastructures.
