Underground fiber optic cable installation requires careful planning, proper trenching, conduit selection, and precise handling to ensure long-term network reliability.

Planning and Design

Successful underground fiber installation begins with thorough planning and route design. Identify the optimal cable path, access points, and potential obstacles such as roads, rivers, or existing utilities. Consider future network expansion and avoid tight bends to prevent fiber damage. Conduct a site survey to assess soil conditions, terrain, and environmental factors, and obtain all necessary permits and right-of-way approvals before construction begins .

Cable Selection

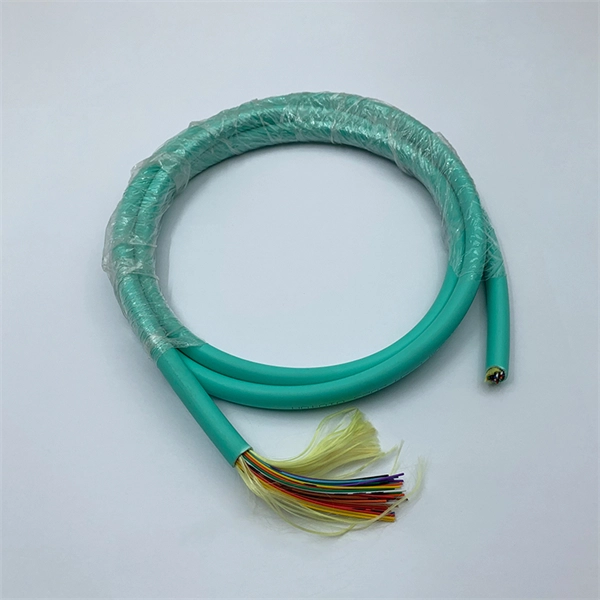

Choose fiber optic cables rated for underground use, often armored for added durability. Cable types vary depending on environmental conditions, rodent activity, and soil compression. Armored cables provide superior mechanical protection, while loose-tube or industrial fiber cables may be used in less demanding environments .

Trenching and Conduit Installation

Excavate trenches using specialized equipment such as trenchers, directional boring machines, or cable plows. Trench depth typically ranges from 12 to 48 inches, depending on urban or rural settings, soil type, and local regulations. Install HDPE or PVC conduits to protect the fiber from mechanical damage, moisture, and environmental stress. Conduits also simplify future maintenance and network expansion .

Cable Handling and Installation

Maintain the minimum bend radius and maximum pulling tension specified by the manufacturer to prevent fiber breakage. Use cable blowing equipment or pulling machines to lay the fiber into conduits efficiently. For direct burial, ensure proper bedding and backfill to protect the cable from soil movement and accidental excavation .

Splicing, Termination, and Testing

After installation, perform splicing and termination using splice closures to secure cable joints. Test the network with Optical Time-Domain Reflectometers (OTDRs) to verify signal integrity and identify any faults. Proper testing ensures long-term performance and reduces maintenance issues .

Maintenance and Future Considerations

Mark the cable route with warning tape to prevent accidental damage during future excavations. Consider installing spare conduits or additional fiber capacity to accommodate future network growth without new trenching . By following these best practices, underground fiber optic installations can achieve high reliability, protection from environmental hazards, and long-term operational efficiency.
