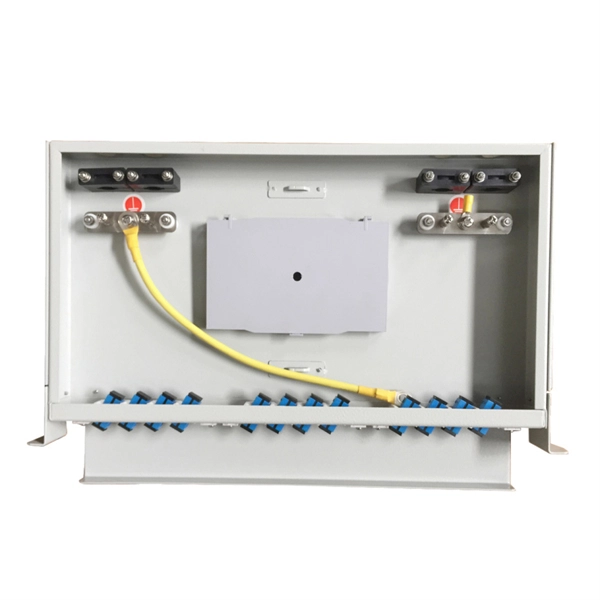

A fiber optic multiple splitter is a passive device that divides a single optical signal into multiple outputs, enabling efficient distribution of signals in fiber networks without requiring power.

Overview and Function

A fiber optic splitter is a passive optical component that splits one incoming optical signal into two or more outgoing signals or combines multiple signals into one, operating without electricity . It relies on light reflection, refraction, and waveguiding to distribute optical power across multiple output fibers. This makes it ideal for FTTH (Fiber to the Home) and PON (Passive Optical Network) architectures, where a single fiber from a central office can serve multiple subscribers efficiently .

Types of Splitters

1. Fused Biconical Taper (FBT) Splitters:
   • Made by fusing and tapering fibers together.
   • Cost-effective for small split ratios (1×2, 1×4, 1×8).
   • Suitable for short distances (≤1 km) and simpler networks .
2. Planar Lightwave Circuit (PLC) Splitters:
   • Fabricated using lithography on a silica substrate to create precise waveguides.
   • Ideal for high split ratios (1×16, 1×32, 1×64) with uniform power distribution.
   • Preferred for long-haul networks, broad wavelength support, and minimal insertion loss .

Split Ratios and Configurations

• Common split ratios: 1×2, 1×4, 1×8, 1×16, 1×32, 1×64.
• Power division: Each output receives a fraction of the input power according to the split ratio (e.g., a 1×4 splitter gives ~25% of input power to each output), .
• Multiple splitters can be combined in centralized or distributed architectures to achieve desired network coverage and flexibility .

Form Factors and Deployment

• Indoor: Plastic or metal enclosures (IP20) for data centers or telecom rooms.
• Outdoor: Ruggedized enclosures (IP65/IP66) for pedestals, cabinets, or utility poles.
• Modular options: LGX cassette splitters, bare fiber splitters, and rack-mounted splitters for easy integration and maintenance .

Applications

• FTTH networks: Serve multiple homes from a single fiber.
• PON networks: Enable point-to-multipoint connectivity, reducing fiber count and network cost.
• Two-way communication: Most splitters are bidirectional, supporting both downstream and upstream signals for internet, voice, and video services .

Key Considerations

• Fiber type: Ensure compatibility with single-mode or multimode fibers.
• Network size: Choose FBT for small networks and PLC for medium to large networks.
• Environmental conditions: Outdoor splitters must withstand temperature, moisture, and UV exposure.
• Centralized vs. distributed splitting: Centralized splitters allow flexible customer assignment, while distributed splitters are fixed once deployed . Fiber optic multiple splitters are essential for scalable, cost-effective, and reliable optical networks, enabling service providers to efficiently distribute signals to multiple endpoints without additional active equipment.
