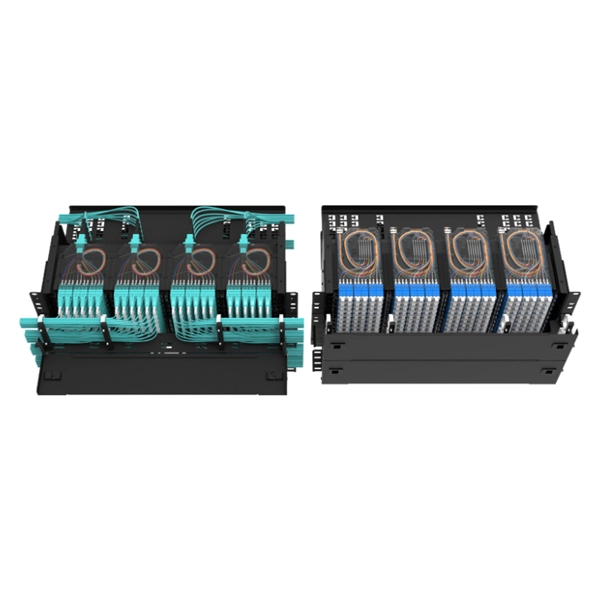

National Standard for Optical Cable Splice Loss

Article Overview

Typical national and international standards recommend maximum splice losses of 0.3 dB for permanent splices, with half of the splices ideally below 0.15 dB, while modern fusion splices often achieve 0.01–0.05 dB.

Standard Splice Loss Values

For permanent fiber optic splices, the widely referenced values are:

  • Maximum splice loss: 0.3 dB
  • Half of splices: ≤ 0.15 dB These values were originally defined in standards from the 1990s and remain widely used in both backbone and access networks, although modern fusion splicing equipment can achieve much lower losses, typically 0.01–0.05 dB for single-mode fibers . Mechanical splices generally exhibit slightly higher losses than fusion splices, and their maximum allowable loss depends on the specific connector or splice type, often up to 0.5 dB for splice-on connectors .

International Recommendations

The ITU-T L.12 and L.400/L.12 Recommendations provide detailed guidance for both single-mode and multimode fibers:

  • Splices should ensure low attenuation and tensile strength near the fiber proof-test level.
  • Both fusion and mechanical splicing are recognized, with the choice depending on expected performance and installation considerations.
  • Maximum attenuation depends on the alignment method (active core, active cladding, or passive V-groove) and the type of splice.
  • Validation procedures include measuring average and maximum attenuation for 97% of splices to ensure quality . Compliance with ITU-T Recommendations is voluntary, but they are widely adopted as best practice in national standards and technical specifications .

Measurement and Quality Control

Splice loss is measured using an Optical Time Domain Reflectometer (OTDR), often with bidirectional averaging to account for mode field diameter mismatches and other measurement artifacts . Proper training and equipment selection, such as core-alignment fusion splicers, are critical to achieving low-loss splices.

Summary

  • Fusion splices: 0.01–0.05 dB typical, ≤ 0.3 dB maximum
  • Mechanical splices: typically higher, ≤ 0.5 dB for splice-on connectors
  • Standards: ITU-T L.12/L.400 and TIA-568 provide guidance for design, installation, and testing
  • Measurement: OTDR with bidirectional averaging ensures accurate loss assessment These values serve as a benchmark for national standards and are used to design optical networks that meet the optical power budget and ensure reliable long-term performance.
