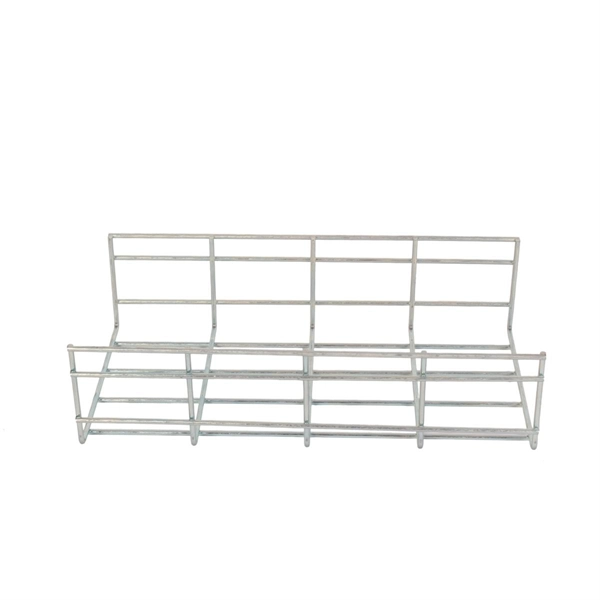

Efficient optical cable bundling combines pre-bundling, protective trays, and hanger systems to organize fibers while minimizing stress and space usage.

Pre-Bundling Techniques

Pre-bundling fibers before installation ensures uniformity and reduces handling stress. Industrial systems, such as the Kurre fiber bundling machine, gently wrap multiple fibers with binder yarn at high speeds (up to 3,000 rpm), maintaining low tensile forces (0.2–4 N) to prevent damage. The binder yarn also allows color-coding for easy identification, and connected accumulators minimize scrap lengths, improving efficiency for long runs of optical cables . Braiding discrete cables into a single unit using polymeric grommets is another method to create a stable bundle that can be easily mounted with hangers .

Cable Management Hardware

For laboratory or optical table setups, Thorlabs offers a variety of cable management solutions:

• Zip-tie-style cable ties with releasable bases secure bundles to surfaces.
• P-Clips and self-adhesive clips hold small-diameter fibers or patch cables.
• Loop clamps and fiber component trays protect cylindrical components and allow fibers to be wound through molded channels, preventing unwanted bending or mechanical stress . These systems can be mounted using standard screws (1/4"-20 or M6) and allow stacking of trays to conserve space.

Hanger Integration

Hangers or mounting brackets can be combined with pre-bundled fibers or braided grommets to suspend cables along walls, racks, or optical tables. Using polymeric grommets with integrated cable hangers ensures that multiple discrete fibers remain organized and protected while allowing easy access for maintenance or reconfiguration . For active optical cables, breaking out fiber legs from the main jacket and terminating them with connectors before securing them with hangers can streamline deployment and testing .

Custom Bundles

Manufacturers like FiberTech Optica provide fully customizable fiber bundles, allowing specific arrangements (spot, line, grid, hex) and precise length tolerances. These bundles can include multimode or single-mode fibers, and even electrical wires, enabling integration into complex systems while maintaining organized routing .

Best Practices

• Avoid tight bends; maintain minimum bend radius for each fiber type.
• Use color-coded binder yarn or clips for easy identification.
• Pre-bundle fibers to reduce installation time and mechanical stress.
• Combine trays, clips, and hangers to secure fibers while allowing flexibility for future modifications.
• Consider automated bundling systems for high-volume or delicate fibers to minimize waste and handling damage. By combining pre-bundling, protective trays, and hanger systems, optical cables can be efficiently organized, reducing installation time, mechanical stress, and space requirements while maintaining accessibility for maintenance and testing.
