A fiber optic box pigtail port is a termination point in a fiber optic enclosure where a pre-terminated fiber pigtail connects to the network, enabling secure splicing and optical signal distribution.

Overview

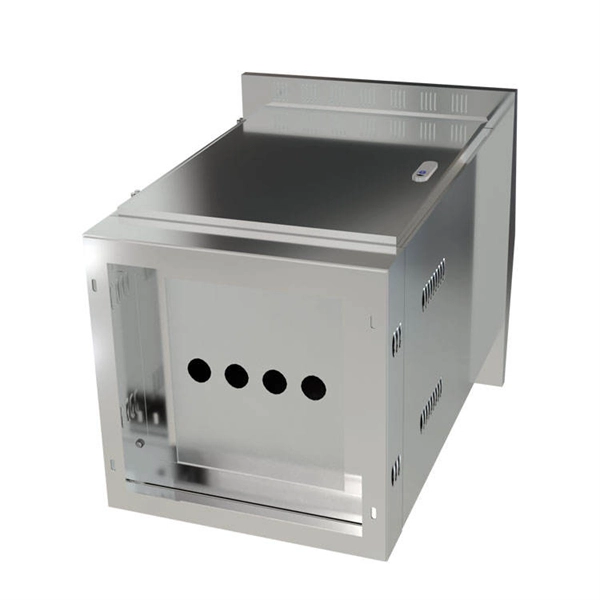

A fiber optic box (also called a termination or distribution box) is designed to protect and organize fiber optic cables and pigtails. It provides a secure environment for splicing, storing, and connecting fibers, typically in indoor or outdoor installations such as FTTH, data centers, or telecom rooms ( ).

Pigtail Ports

Pigtail ports are the interface points inside the box where fiber pigtails—short lengths of fiber with a connector on one end—are terminated. The other end of the pigtail is spliced to the incoming fiber cable. These ports allow the optical signal to be routed to devices like transceivers or patch panels ( ).

Key Features:

• Connector Types: Common pigtail interfaces include SC, LC, FC, and ST, which determine compatibility with network equipment ( ).
• Single-mode vs Multi-mode: Pigtails can be single-mode (for long-distance transmission) or multi-mode (for shorter distances) ( ).
• Splicing and Protection: The pigtail is fusion-spliced to the incoming fiber, and the excess fiber is coiled and stored inside the box to prevent damage ( ).
• Adapter Integration: Ports often include adapters that allow easy insertion and removal of connectors, enabling flexible deployment and testing ( ).

Applications

• FTTH Installations: Wall-mounted boxes with pigtail ports provide secure termination for residential or small business fiber connections ( ).
• Data Centers: High-density patch panels with multiple pigtail ports organize and distribute optical signals efficiently ( ).
• Telecom Networks: Pigtail ports facilitate connections between backbone cables and optical transceivers, ensuring low insertion loss and reliable signal transmission ( ).

Summary

A fiber optic box pigtail port is essential for terminating fiber cables, connecting pigtails, and maintaining organized, protected, and testable optical paths. By using standardized connectors and adapters, these ports ensure compatibility, low signal loss, and easy maintenance in various network environments ( ).
