Article Overview
A light distribution box is not the same as a beam splitter; while both split light, a light distribution box is a fiber-optic network device for distributing signals, whereas a beam splitter is an optical component used in free-space or lab optics to divide a light beam.

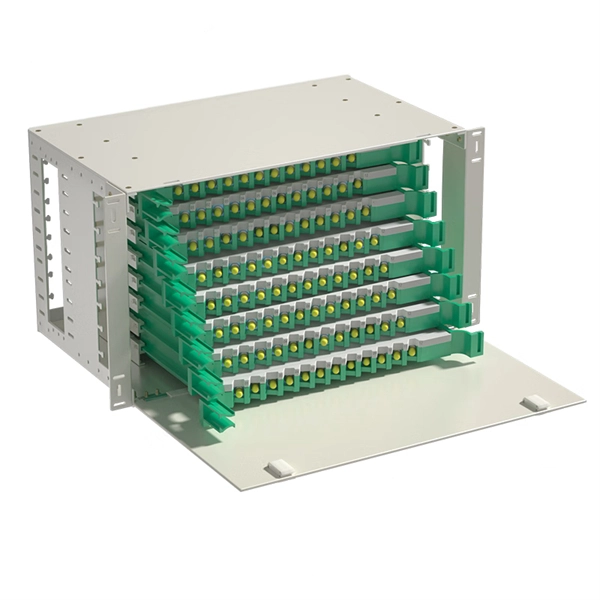

Light Distribution Box
A light distribution box is primarily used in fiber optic networks to manage and distribute optical signals. It houses fiber optic splitters, which are passive devices that can split an incoming light signal into multiple outputs, often at specific ratios (e.g., 1×4, 1×8) to serve multiple subscribers in FTTH, GPON, or EPON networks . These splitters, sometimes called PLC splitters, are based on planar lightwave circuit technology and are designed for high reliability, compact form factor, and low insertion loss. The light distribution box provides a structured environment for these splitters, including fiber management, protection, and connection points.
Beam Splitter
A beam splitter, on the other hand, is an optical component used to divide a single light beam into two or more beams in free-space optics or laboratory setups . Beam splitters can be cube, plate, or polarizing types, and they are used in applications such as interferometers, cameras, projectors, and laser systems. The splitting ratio can be fixed or adjustable, and the device may reflect part of the light while transmitting the rest. Unlike fiber optic splitters, beam splitters are not designed for network signal distribution but for optical experiments, measurement, or imaging.
Key Differences
| Feature | Light Distribution Box / Fiber Optic Splitter | Beam Splitter |
|---|---|---|
| Medium | Optical fiber | Free-space light (air or vacuum) |
| Purpose | Distribute optical signals to multiple network endpoints | Split or combine light beams for measurement, imaging, or laser applications |
| Construction | PLC or FBT-based fiber device inside a protective box | Glass prisms, half-silvered mirrors, or coated plates |
| Applications | Telecommunications, FTTH, PON networks | Laboratory optics, interferometry, cameras, projectors |
| Splitting Ratio | Often fixed, designed for network power budget | Fixed or variable, can be polarization-dependent |
In summary, while both devices split light, a light distribution box is a network-oriented fiber optic device, whereas a beam splitter is a free-space optical component used in scientific and imaging applications . They are not interchangeable.
