Installing fiber optic cables in a patch panel requires careful planning, proper routing, termination, and labeling to ensure network reliability and ease of maintenance.

Preparation and Planning

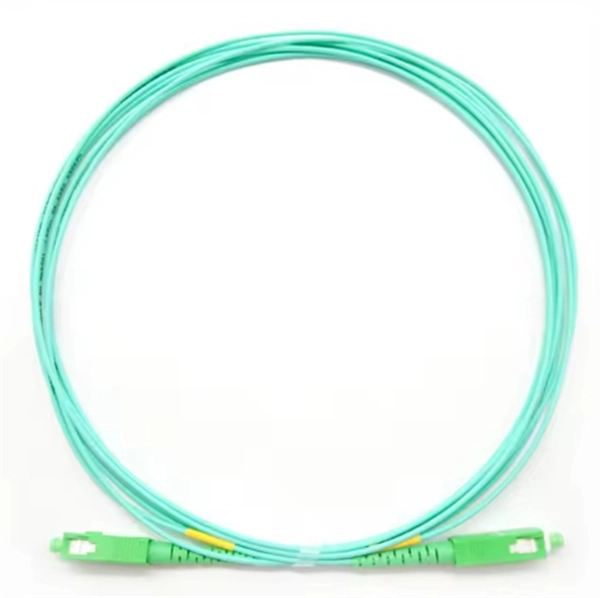

Before installation, conduct a site survey to determine cable routes, panel locations, and potential obstacles such as HVAC ducts or structural beams. Select the appropriate fiber type (single-mode or multi-mode) and connectors (LC, SC, ST, or MTP/MPO) based on network requirements and environment. Ensure cables are long enough to reach the panel with some slack for future adjustments, and gather necessary tools such as a rackmount fiber enclosure, patch panel, screws, grommets, and labeling materials .

Routing and Securing Cables

Route fiber cables into the panel through side or bottom openings to minimize water intrusion and install grommets to prevent chafing. Maintain the minimum bend radius—typically 5 inches for cable loops and 1.5–2 inches for individual strands—to avoid signal loss or fiber damage. Keep courtesy loops behind strands to allow for future re-termination or testing . Secure cables with strain relief brackets to prevent tension on the fibers.

Termination

Prepare the fiber ends by stripping the outer sheath and cutting off the first 5–10 feet of cable to remove any damaged sections from pulling. Terminate fibers using the appropriate connectors or fusion splicing, ensuring each fiber is properly seated in the patch panel adapters. Organize fibers according to the panel layout, placing home run fibers at the bottom or left side depending on the panel orientation .

Labeling and Documentation

Label each fiber with its to/from destination for easy identification during troubleshooting or future expansion. Attach a panel label inside the patch panel door and mark the outside with the panel designation. Proper labeling improves network reliability and simplifies maintenance .

Testing and Verification

After installation, test each fiber using an OTDR, light source, or power meter to verify signal integrity and ensure there is no excessive attenuation. Document test results and maintain records for future reference .

Best Practices

• Clean the panel and remove any debris before installation to prevent contamination.
• Avoid running fibers through brackets that could shear or damage strands.
• Leave extra conduit space (25–40%) for future network expansion.
• Follow industry standards such as TIA/EIA-568, ANSI/NECA/FOA-301, and NEC Article 770 for safety and performance . By following these steps, you can achieve a well-organized, reliable, and maintainable fiber optic network that supports high-speed data transmission and future scalability.
