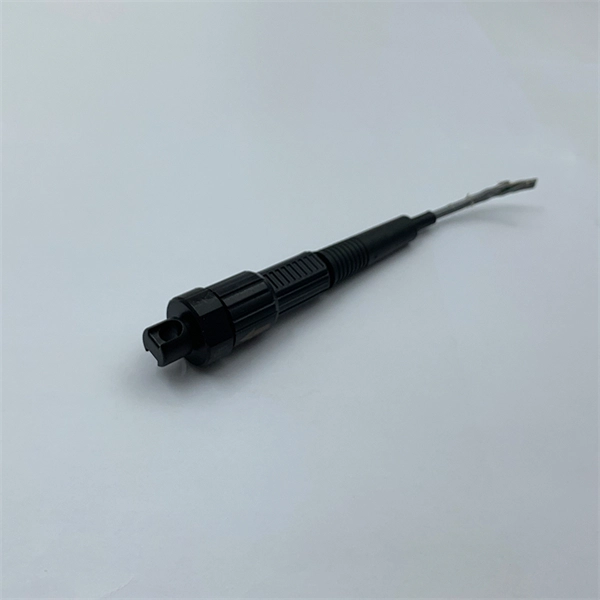

Fiber optic strain sensors measure strain by detecting changes in light properties within optical fibers, offering high sensitivity, durability, and immunity to electromagnetic interference.

Working Principle

Fiber optic strain sensors operate based on the strain-optic effect, where mechanical deformation of an optical fiber alters its physical dimensions and refractive index, causing measurable changes in the light traveling through it . These changes can manifest as shifts in wavelength, intensity, phase, or polarization, which are then translated into precise strain measurements. Unlike traditional strain gauges, fiber optic sensors are non-intrusive, resistant to harsh environments, and immune to electrical hazards .

Types of Fiber Optic Strain Sensors

1. Fiber Bragg Grating (FBG) Sensors: FBG sensors reflect a specific wavelength of light, which shifts in response to strain or temperature changes. Temperature compensation is often applied to isolate strain effects. FBGs can be multiplexed along a single fiber, enabling high-speed multipoint measurements over large areas .
2. Plastic Fiber Sensors: These use plastic optical fibers bonded to structures. Strain changes the fiber curvature, altering light intensity. They are cost-effective, lightweight, and suitable for structural health monitoring of bridges, dams, and buildings .
3. Distributed Strain Sensors: Using Rayleigh backscatter or other scattering phenomena, these sensors provide continuous strain measurements along the entire fiber length, with sub-millimeter spatial resolution. They are ideal for monitoring pipelines, railways, and long infrastructures up to 100 km .

Advantages

• High Sensitivity and Precision: Detect minute strain changes with sub-millimeter resolution .
• Durability: Resistant to corrosion, high temperatures, and electromagnetic interference .
• Lightweight and Compact: Can be embedded in structures without adding significant mass .
• Long-Term Reliability: Provide consistent measurements over extended periods .
• Safety: Immune to electrical hazards, suitable for explosive or high-voltage environments .

Applications

Fiber optic strain sensors are widely used in:

• Civil Engineering: Monitoring bridges, buildings, and dams for structural integrity .
• Aerospace and Automotive: Measuring strain in aircraft components and vehicles .
• Industrial Monitoring: Quality control and machinery stress analysis .
• Infrastructure Surveillance: Pipelines, railways, highways, and power lines using distributed sensing .

Summary

Fiber optic strain sensors provide a highly accurate, durable, and versatile solution for measuring strain in various environments. Their ability to operate in harsh conditions, combined with multiplexing and distributed sensing capabilities, makes them superior to traditional strain gauges for modern structural and industrial monitoring applications .
