Cable trays are classified by design and material, while cables are classified by type, voltage rating, and application.

Cable Tray Classification

Cable trays are mechanical support systems that organize and protect electrical cables. They are classified based on design, material, and application: 1. Types of Cable Trays

• Ladder Trays: Feature two side rails connected by rungs; ideal for heavy-duty power cables and high-heat environments due to excellent ventilation .
• Perforated Trays: Have a perforated base for moderate-weight cables; suitable for structured cabling and data/communication cables .
• Solid Bottom Trays: Fully enclosed for maximum protection; used for sensitive or hazardous environments .
• Wire Mesh/Basket Trays: Lightweight and flexible; ideal for fiber optic and low-voltage cables, allowing easy modifications .
• Channel Trays: Designed for small cable runs or single-cable support; used in light-duty applications . 2. Materials
• Steel (galvanized or stainless): Strong, durable, suitable for heavy loads and high-temperature environments .
• Aluminum: Lightweight, corrosion-resistant, suitable for indoor and outdoor use .
• FRP (Fiber Reinforced Plastic): High resistance-to-weight ratio, corrosion-resistant, used in chemically aggressive environments . 3. Selection Considerations
• Cable type and volume
• Environmental conditions (indoor/outdoor, moisture, chemicals)
• Load capacity and heat dissipation
• Compliance with NEC, NEMA, and IEC standards

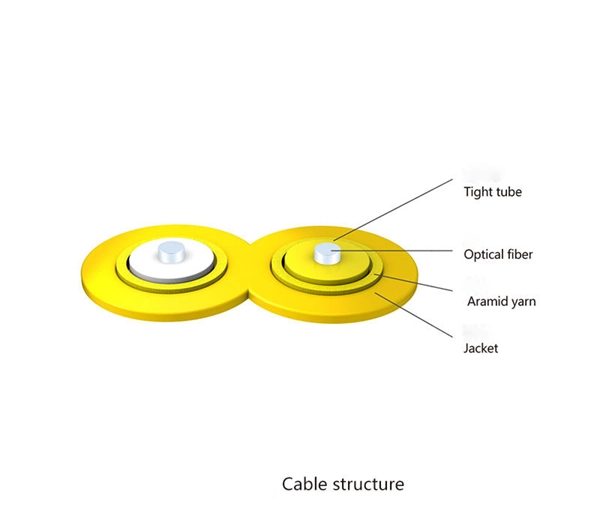

Cable Classification

Cables installed in trays are classified by type, voltage rating, shielding, and application: 1. Common Cable Types

• Tray Cable (TC): Multi-conductor, flame-retardant, rated for 600V; used for power and control circuits .
• Instrumentation Tray Cable (ITC): Shielded or unshielded, 300V rating, for instrumentation and control circuits; may be dual-rated as PLTC/ITC .
• Metal-Clad (MC) Cable: Provides mechanical protection; used for power distribution in industrial settings . 2. Ratings and Features
• Voltage Rating: Typically 300V–600V depending on application .
• Exposure Rating (ER): Allows cable to leave the tray for short distances if properly supported .
• Environmental Suitability: Indoor, outdoor, corrosive, or hazardous locations .
• Flame and Mechanical Resistance: UL-listed for flammability, crush, and impact resistance . 3. Installation Considerations
• Proper support and securing of cables every 6 feet for ER-rated cables
• Compliance with NEC Section 392 and related articles
• Fill ratio adherence (typically 40–50% for power cables) to prevent overheating

Summary

Cable trays are classified by design (ladder, perforated, solid, wire mesh, channel) and material (steel, aluminum, FRP), while cables are classified by type (TC, ITC, MC), voltage rating, shielding, and environmental suitability. Proper selection ensures safety, compliance, and efficient cable management in industrial, commercial, and residential installations .
