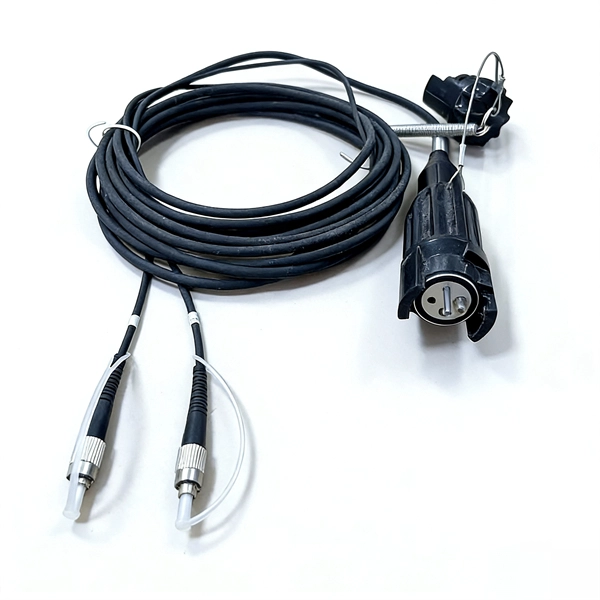

To connect a fiber optic terminal box to a monitoring box, terminate the incoming fiber into the terminal box, use pigtails and adapters to link to the monitoring device, and test the connection for signal integrity.

Step-by-Step Connection Process

1. Prepare the Installation Site Choose a location for the terminal box that is easily accessible and secure. Ensure the monitoring box is nearby and that both boxes are mounted properly, either on a wall or in a rack, depending on your setup . 2. Prepare the Fiber Optic Cable Strip the outer jacket of the fiber optic cable carefully, avoiding damage to the fibers. Clean the fiber ends with lint-free wipes and alcohol to remove dust or debris . 3. Terminate the Fiber in the Terminal Box Insert the prepared fiber into the terminal box. Use the splice or mechanical protection units inside the box to secure the fiber. If the terminal box has multiple cores, each fiber can be fused to a corresponding pigtail . Ensure the fibers are organized to maintain the standard bend radius and prevent entanglement . 4. Connect Pigtails to Adapters Attach the pigtails from the terminal box to fiber adapters (flanges) that serve as the interface to the monitoring box. Each pigtail should correspond to a port on the monitoring device . 5. Link to the Monitoring Box Use fiber jumpers (patch cords) to connect the adapters in the terminal box to the monitoring box. Both ends of the jumper have connectors that fit into the terminal box adapter and the monitoring box port . 6. Secure and Organize Cables Use cable ties or trays to organize the fibers and jumpers, preventing sharp bends or stress on the connections. Proper cable management ensures long-term signal stability . 7. Test the Connection After connecting, gently pull on the fibers to ensure they are secure. Use a fiber power meter or an Optical Time-Domain Reflectometer (OTDR) to verify signal quality and check for weak points, high attenuation, or reflection issues . 8. Maintenance Tips Regularly inspect the terminal and monitoring boxes for dust, loose connections, or damage. Clean connectors and adapters as needed, and replace any faulty components to maintain optimal network performance . By following these steps, the fiber optic terminal box can be effectively connected to a monitoring box, ensuring reliable signal transmission and easy maintenance.
